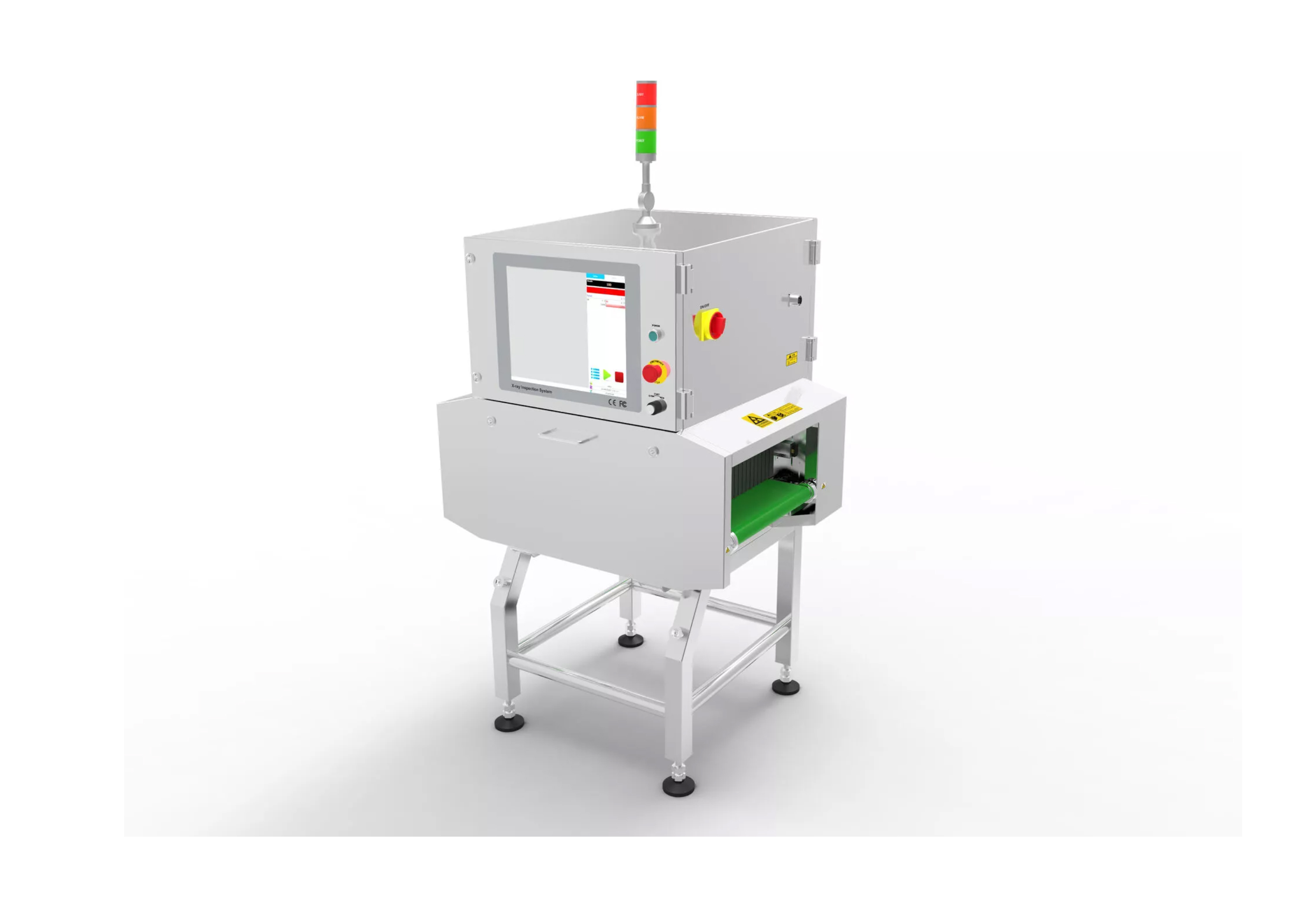

AT 4 0 16 Food x ray scanner is f oreign m aterial x ray i nspection s ystem designed to inspect food and drug, to detect metal and non metallic foreign materials in products with high sensitivity and stability improv ing the quality of finished products. It can d etect the tiny foreign materials in food and pharmaceutical products automatically With embedded Linux operating system and integrated hardware configuration, it is fast , stable and convenient to operate. With SUS 304 stainless steel in all surfaces , AT4 0 16 is clean for food and easy to be ke pt clean .
Specification | |
---|---|
Best detection accuracy | Stainless steel SUS304 ball: φ0.4mm, ceramic ball: φ 0.8mm, glass: φ 1.0mm |
Tunnel size | 440 ( * 160 ( mm |
Maximum detection width | 400mm |
Maximum detection length | 400mm |
Maximum detection height | 150mm |
Conveyor height | 700mm |
Conveyor belt speed | 3 60 meters/minute |
Belt b earing capacity | 5kg |
Protection level | IP66 |
Inspected items packing | in bag, box, or bulk |
Material | Main body: SUS304 Conveyor belt: high strength polyurethane 1.2mm green food grade PU belt Lead curtain: Food grade, detachable and easy to clean |
Cleaning | Tool free removal of conveyor belt, easy to clean |

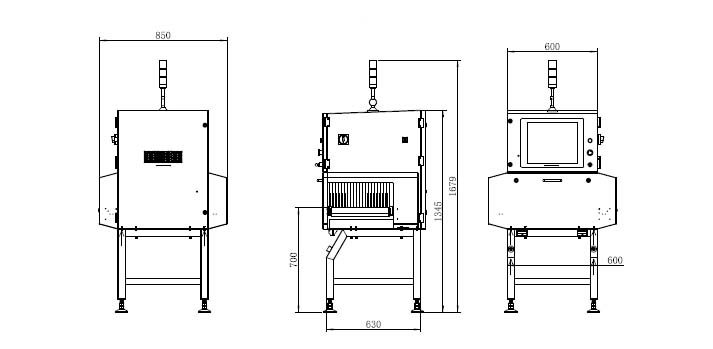

Dimension | 850 * 730 * 1679mm (L * W * H) |
Net weight | 210kg |
Packing size | 120*90*157 cm |
Gross weight | 260 kg |
XRAY AND IMAGING | |
---|---|
Xray generator voltage | 3080kV |
Xray generator current | 23mA |
Xray leakage | 1μSv/h |
Scanning method | Linear scanning |
Ray direction | Downward |
Pixel size | 0.4mm |
Monitor | 17 inch LCD touch screen |
Operation | Touch screen operation |
Operation | System Linux System |
Data interface | USB 3.0 |
Parameter setting | Self learning / manual adjustment |
Alarm | sound and light |
Optional rejecter | NG shutdown, air jet, swing arm , push rod , sinking , flipping, etc. to be customized |
WORKING CONDITION | |
---|---|
Power supply | AC220 / 230V, 50 / 60Hz , Optional 110V |
Operation temperature | 5 40 |
Operation | humidity 30 85 (no ne condensation) |
